Core Concepts

These are some core concepts in Cozystack.

Platform Architecture

The core principle of the platform is that the end-user never has direct access to the API management cluster. Instead, the platform facilitates easy integration with the provider’s system, which in turn creates all the necessary services for the user. Then, it provides the credentials for user access to these services.

Besides managed services, the platform allows to bootstrap tenant Kubernetes clusters. The users have full access to their tenant Kubernetes clusters but have no access to the management cluster.

All controllers serving the user’s cluster are run externally from it, which allows to fully isolate the management cluster API from tenants and minimizes the potential for attacks on the management cluster.

Once access is granted to the tenant Kubernetes, the user can order physical volumes, load balancers, and eventually other services using tenant Kubernetes API.

All use cases are presented here:

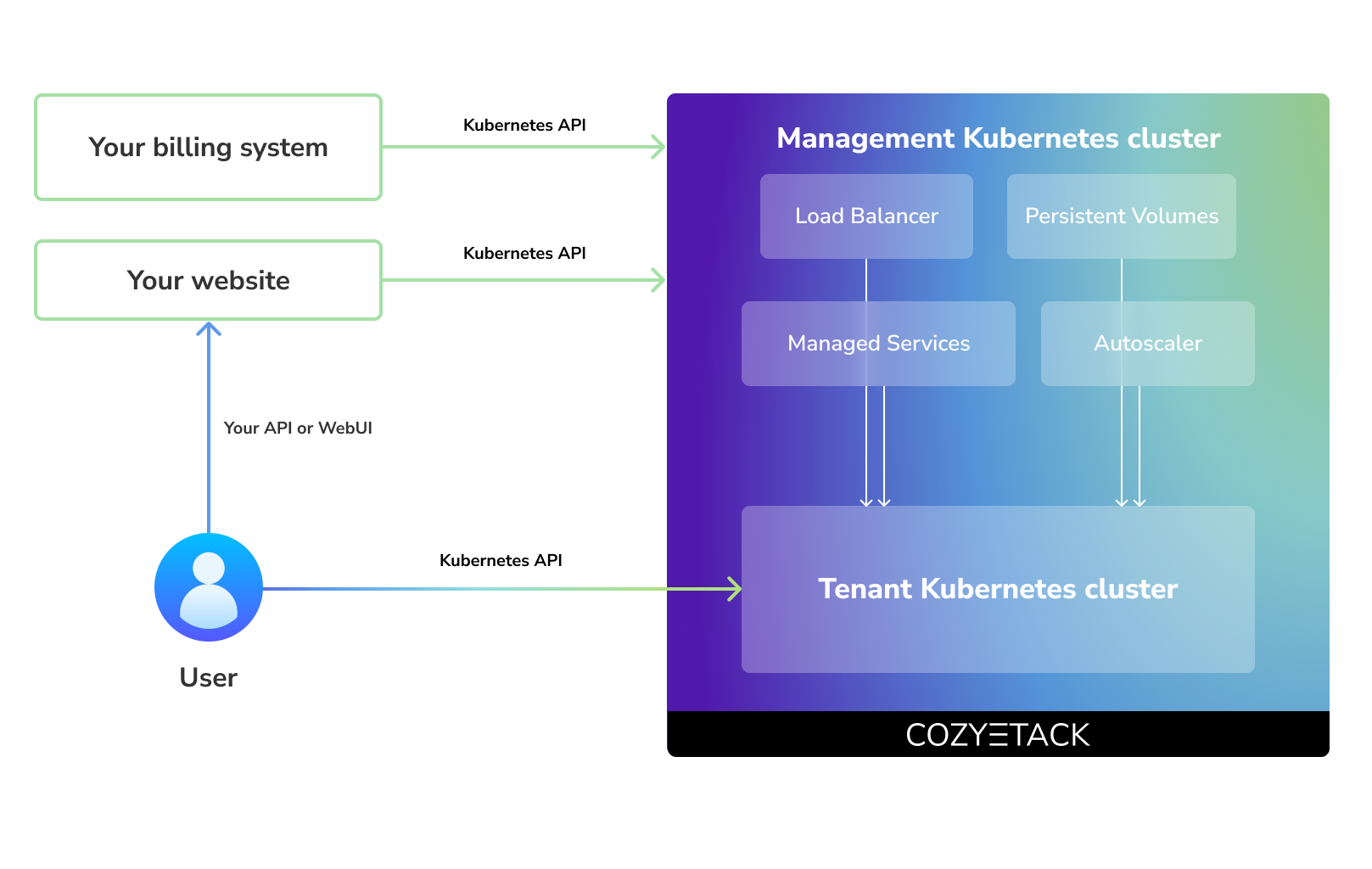

• Using Cozystack to build public cloud
  How to use Cozystack to build public cloud

• Using Cozystack to build private cloud
  How to use Cozystack to build private cloud

• Using Cozystack as Kubernetes distribution How to use Cozystack as Kubernetes distribution

Tenant system

A tenant is the main unit of security on the platform. The closest analogy would be Linux kernel namespaces.

Tenants can be created recursively and are subject to the following rules:

Higher-level tenants can access lower-level ones.

Higher-level tenants can view and manage the applications of all their children.

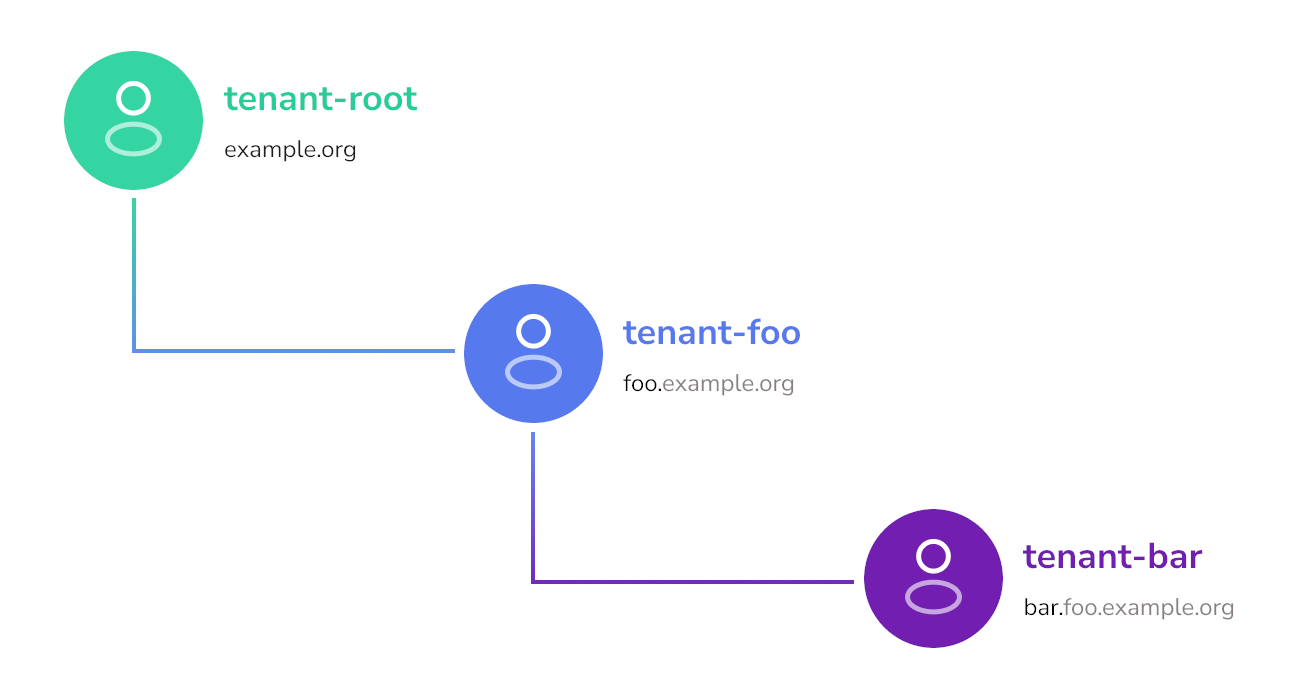

Each tenant has its own domain

By default (unless otherwise specified), it inherits the domain of its parent with a prefix of its name, for example, if the parent had the domain example.org, then tenant-foo would get the domain foo.example.org by default.

Kubernetes clusters created in this tenant namespace would get domains like: kubernetes-cluster.foo.example.org

Lower-level tenants can access the cluster services of their parent (in case they do not run their own)

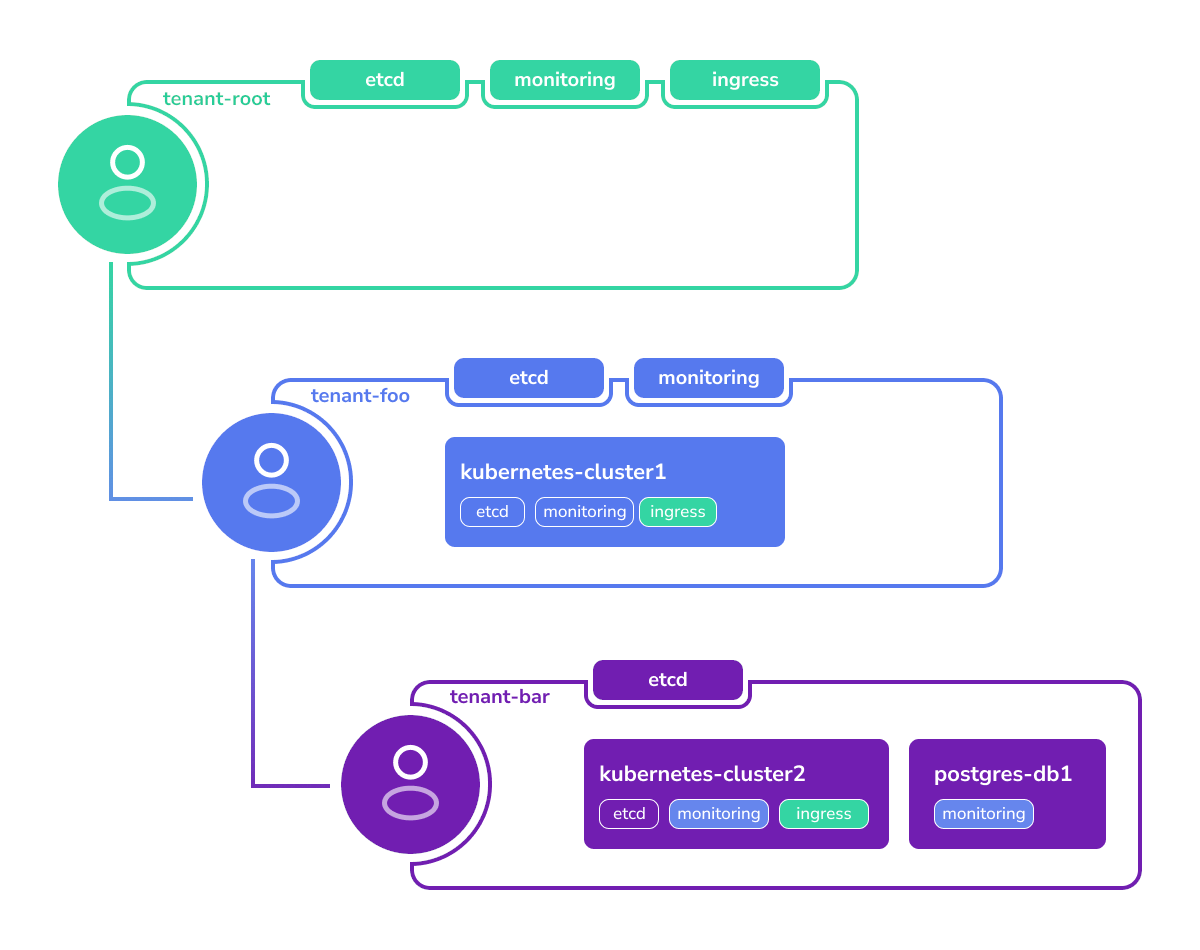

By default there is tenant-root with a set of services like etcd, ingress, monitoring. You can create create another tenant namespace tenant-foo inside of tenant-root and even more tenant-bar inside of tenant-foo.

Let’s see what will happen when you run Kubernetes and Postgres under tenant-bar namesapce.

Since tenant-bar does not have its own cluster services like ingress, and monitoring, the applications will use the cluster services of the parent tenant.
This in turn means:

• The Kubernetes cluster data will be stored in etcd for tenant-bar.
• All metrics will be collected in the monitoring from tenant-foo.
• Access to the cluster will be through the common ingress of tenant-root.
